Wireless magnetic contact 868
for WiPro III and C.A.S. II

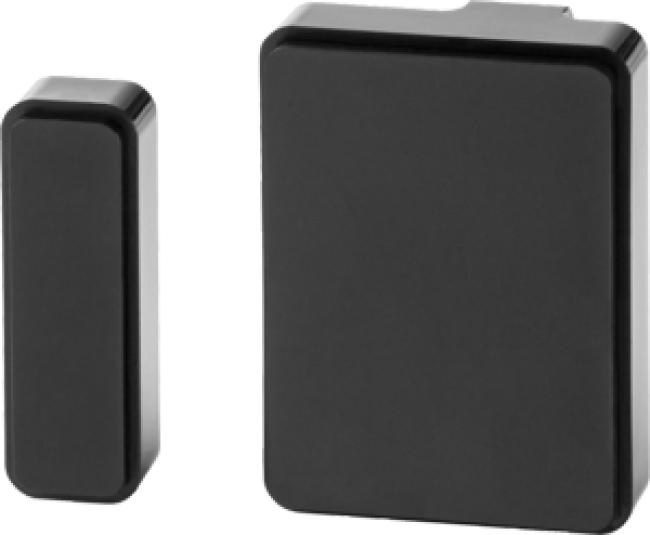

- 100757 (Wireless magnetic contact 868 (black))

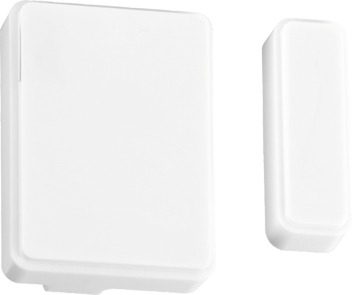

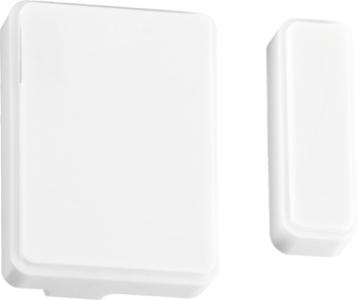

- 100758 (Wireless magnetic contact 868 (white))
The contacts are battery-driven and report opening/closing wireless to the main units from C.A.S. II and WiPro III.
The contacts stick to the surfaces, so you don't have to drill any holes in the vehicle. Special automotive self-adhesive pads stick on many kinds of surfaces. For (acrylic) glass the self-adhesive warning is included on the labels.
Inside the radio magnetic contacts, proven reed contact technology is coupled with the latest 868 MHz wireless technology:
Removing the magnet in the smaller enclosure far enough from the transmitter unit, starts the reed contact sending a signal. The main unit is aware of any state of all wireless contacts.
Developing the wireless contacts, thought has been given to the usually bigger distances on window frames. At least 22mm are possible.
All wireless components are secured via unique serial numbers and 4 billion changing codes. Once programmed to the main unit, only paired devices function.
Even on a voltage drop the data is stored. Deletion and reprogramming in the main unit is stil possible.
Further another reed contact protects from outer magnetic influences.
The single, cheap button cell energizes the contact for several years. Depending on the guarantee of the battery, they should be changed every two years.
A weak battery is indicated via the LED on the wireless component and via an accoustic signal from
Information according to the battery laws
As our batteries and accumulators can be contained in our shipments, we are obligated according to the battery law (BattG) to point out the following:
Batteries and accumulators must not be disposed of in the household waste, but you are legally obliged to return used batteries and accumulators.
Waste batteries can contain harmful substances that can damage the environment or your health if stored or disposed of incorrectly.
However, batteries also contain important raw materials such as iron, zinc, manganese or nickel and can be recycled. You can charge the batteries after
Use either to return it to us or in the immediate vicinity (eg in the trade or in municipal collecting points or in our dispatch warehouse)
Free of charge. The sale in sales outlets is restricted to end users for the usual quantities as well as such old batteries,
Which has been or has been carried out by the distributor as new batteries in its assortment.
The sign with the crossed-out wheeled bin means that you are not allowed to dispose of batteries or accumulators in domestic waste.
This symbol also contains the following symbols with the following meaning:
Pb: Battery contains lead
Cd: Battery contains cadmium
Hg: Battery contains mercury
