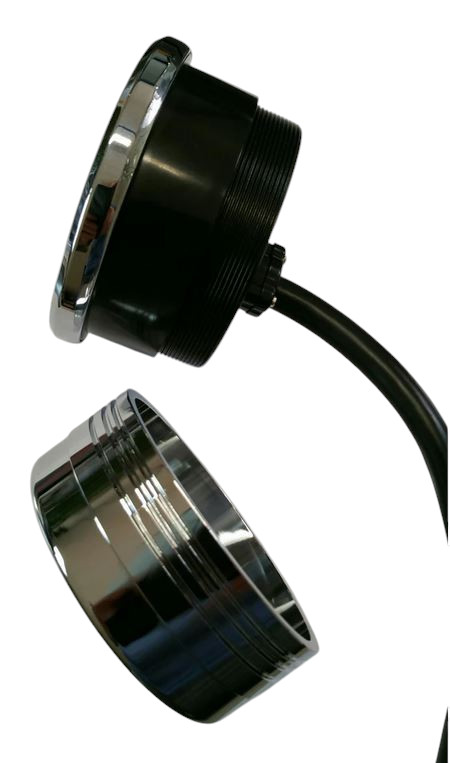

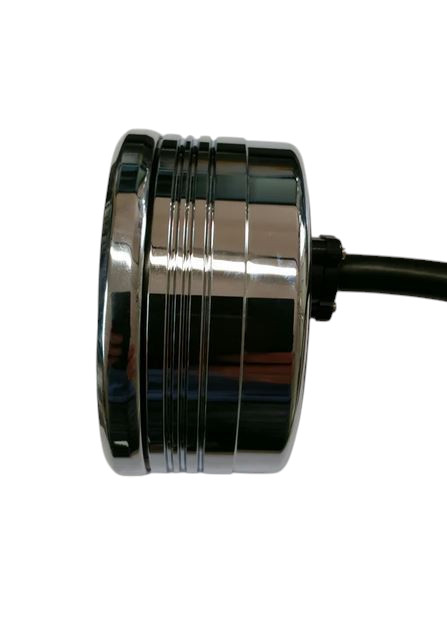

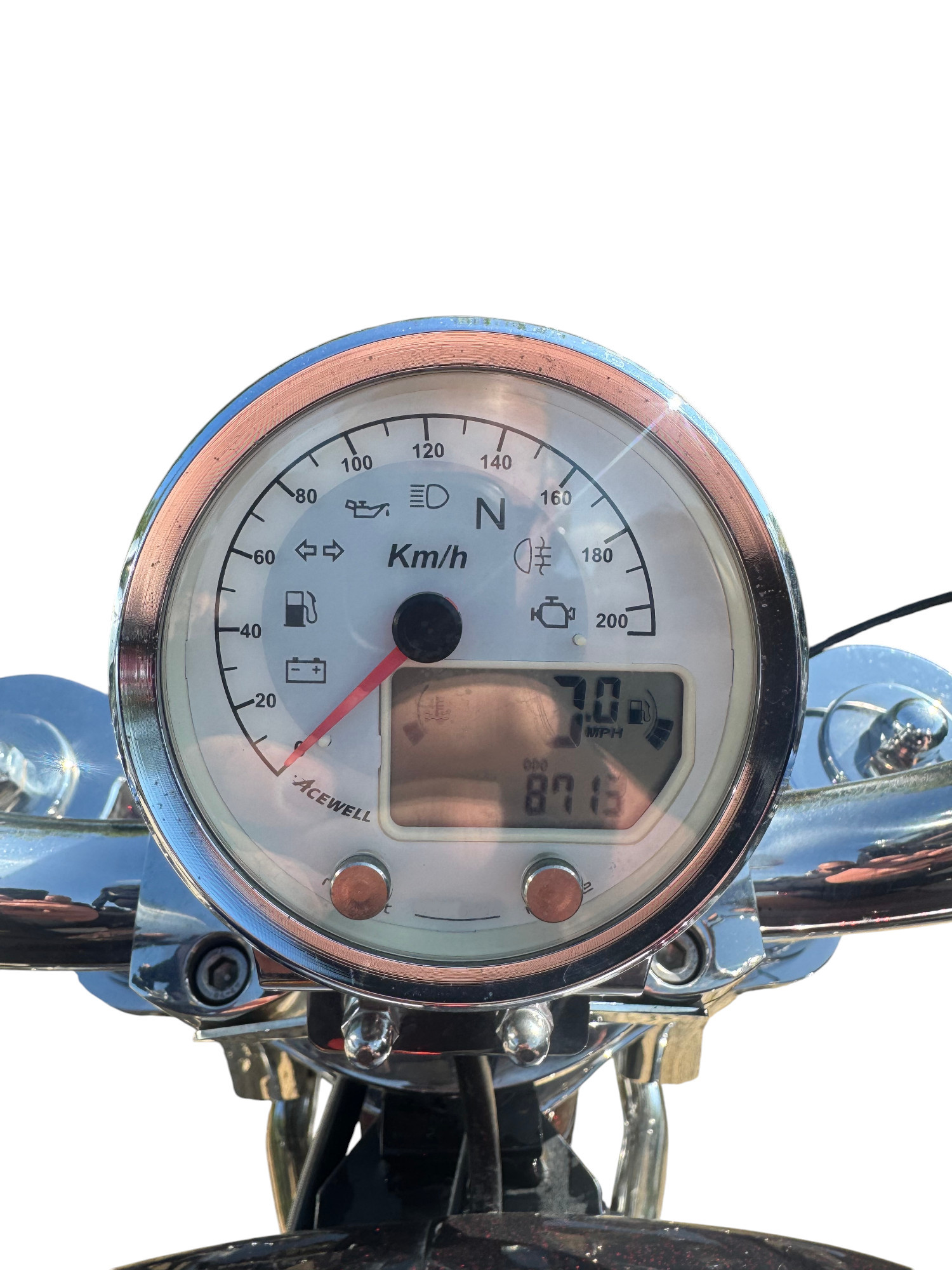

The speedometer is a round instrument with a classic needle speed display and other functions:

Needle speed meter with a shift flash
Digital speed display up to 399.9 km/h
Digital display of
Day kilometers Trip 1 + 2
Total kilometer status
Digital speed display until 19,900 rpm
Average and maximum speed
Average and maximum speed
Temperature - additional storage reached maximum temperature
Gait indicator
Fuel gauge
time
Voltmeter
Travel time
Operating hour counters
Adjustable switching warning with LED display
Gang display is removed via the speed and speed meter and can be switched via off mode from
Shift flash with 3 different colors
Scroll function of the second display line of 1-20 seconds adjustable or off mode
8 LED control lights
Gear display up to 8 gears, neutral, reverse gear and off mode possible
2 Temperature displays for oil, water or outside temperature with additional warning LED display for overheating - sensors included!
Digital speed display until 19,900 rpm
Balken tank display adjustable resistance range from 0 to 990 ohms, or off mode
Battery monitoring from 11.0 to 15.0 volts adjustable, reports over/undersupply
Maintenance reminder function can be entered in hours or km
In the new state, the total kilometer status is freely adjustable - after that no longer
Universal wheel circumference setting area: 1-3999mm
Acceptance of the speed from the original sensor possible.
The end user is able to display the speed display with or without a comma.
Background color from the display in 3 colors can be selected. (Blue, green, amber)
Back lighting from the dial can be adjusted in 10 brightness levels
Water resistant IP 67 and extremely water, vibration and shockproof (vibrations 8g, push 100g tested)
E-certified
Abh
Scope of delivery

Speed ​​sensor with magnet
Temperature sensor (P 1/8 ")
Air temperature sensor
Fastening material
Cable set with waterproof plugs and shrink hoses
German installation instructions with a circuit diagram
Abh

Mass:
Outside diameter, hole and depth: 95.0 mm Ø, 85.0 mm Ø and 56.1mmmference in inches.
