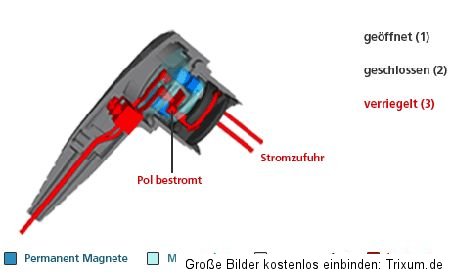

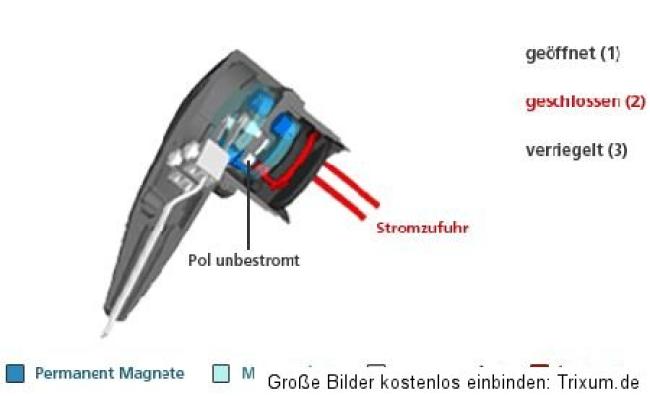

In contrast to the MagCodePower system, which is only magnetically contacting and thus "self-isolated", the second product generation, the MagCodePowerSystemPro, has an additional mechanical interlock. This ensures that the switching (3) takes place only after the external contact (2). Thus, the MagCodePowerSystemPro does not have any arc faults and the system is thus suitable even for future 42V applications

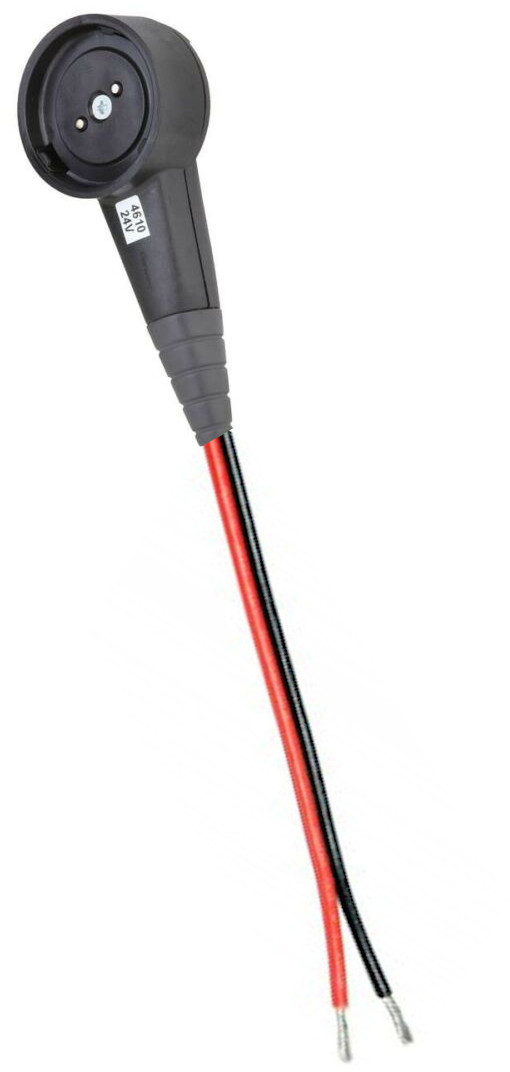

Scope of delivery: Set = Powerclip / plug + port / socket

MagCodePowerSystemPro Locking mechanism twist lock Terminal PowerPort: Connection technology: cable soldering/crimping Terminal PowerClip: Max. wire cross section: screw type 2,5 mm² Mounting cut-out PowerPort: Mounting depth PowerPort: (with/without fastener ring) Ø 28,0 mm (M28) 16,5 mm / 20,0 mm Height of PowerClip: (with/without fastener ring) 28,0 mm / 24,5 mm Rated voltage**: Max. current load: 12 V/ 24 V DC 25A at +70°C Vibration resistance: 3 axes, 8h, 10Hz - 1000 Hz, 3g Shock resistance: 6 axes, 10 shocks, 50g each Dust- and water resistance Port (frontside installed with o-ring): Port (connection side): Clip (not connected): Clip (on Port):   IP 5K9K IP 5K0 IP 40 IP 42 Duty cycles without load: Duty cycles under load: > 10.000 cycles      5.000 cycles
